CUT40NH

Item Number: L14003


Description：

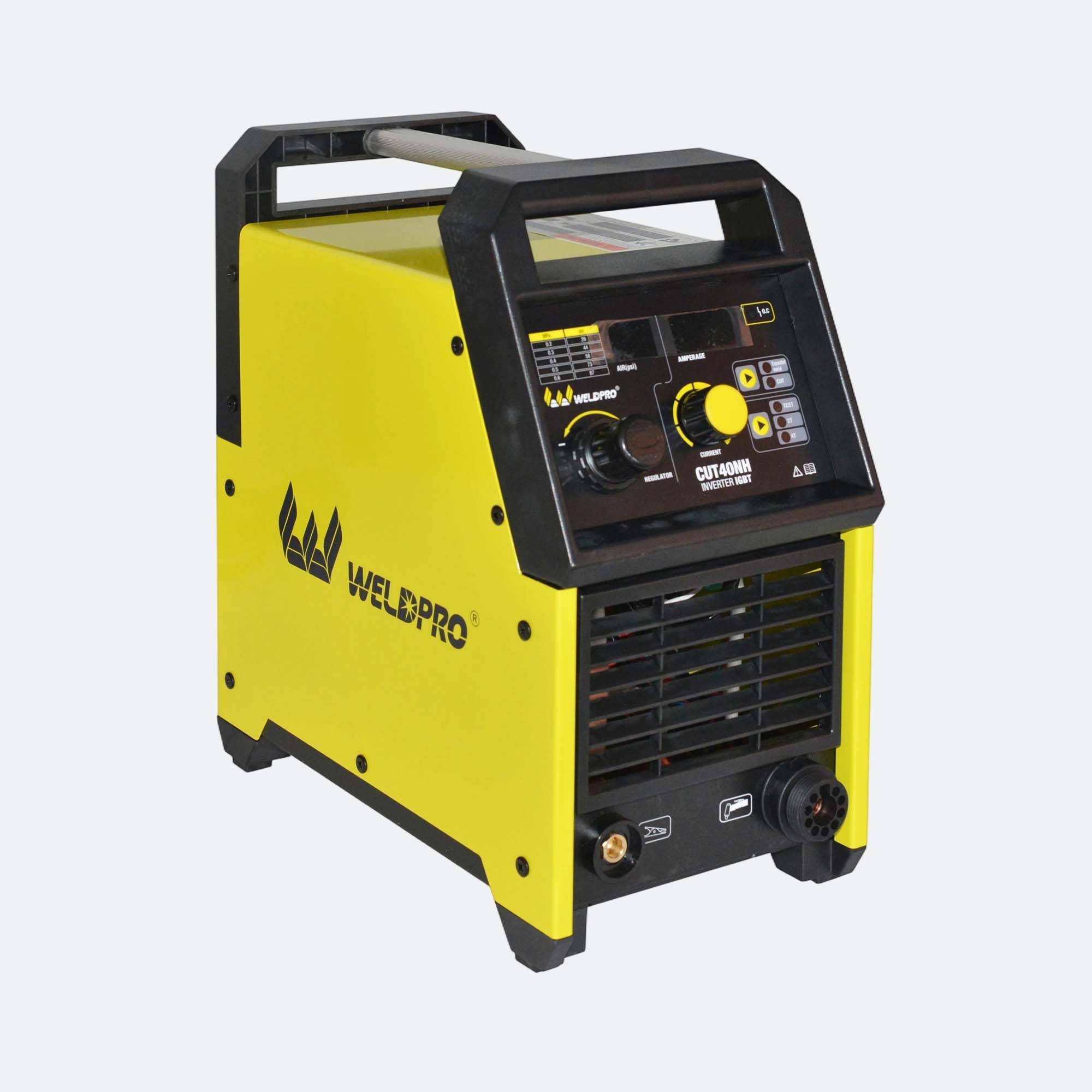

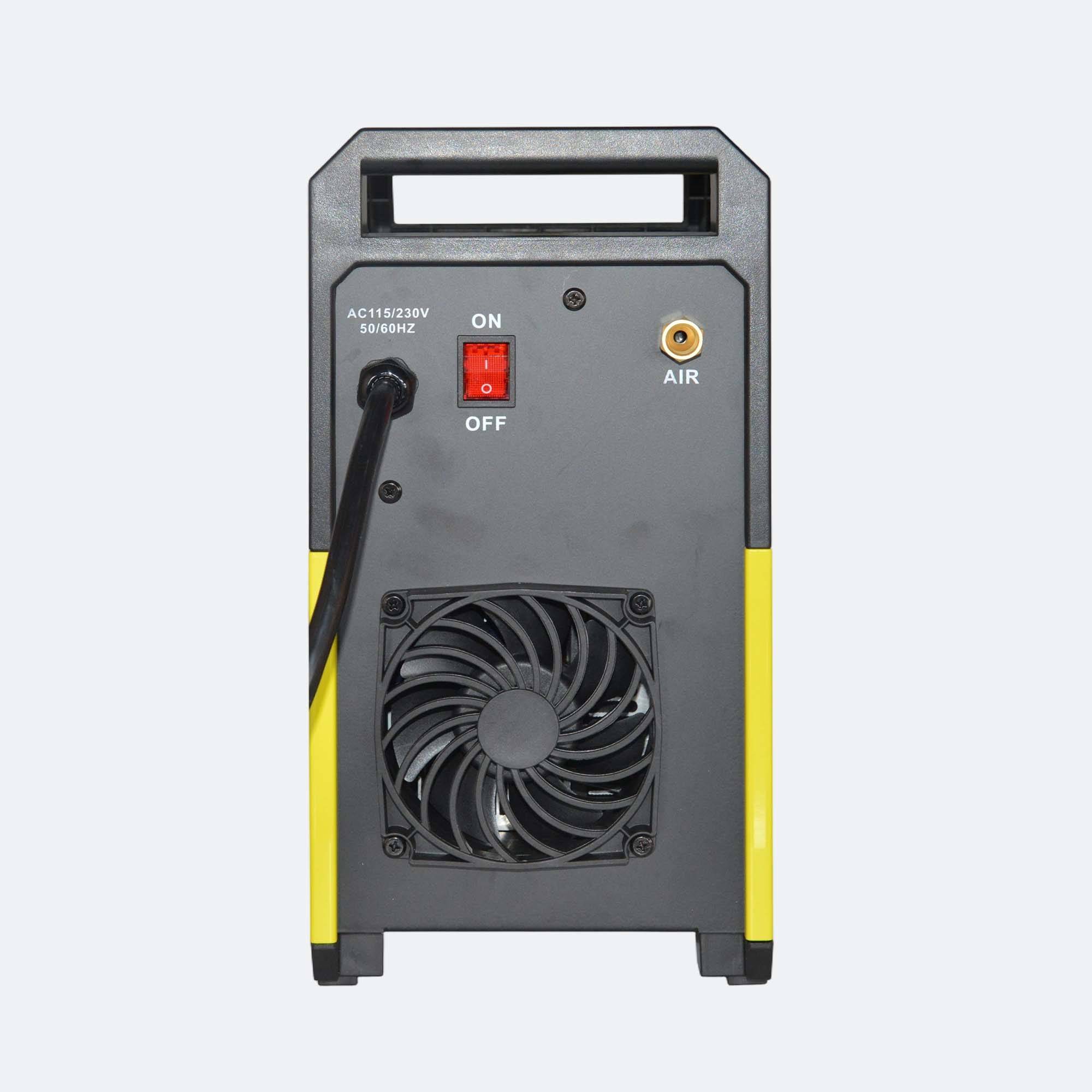

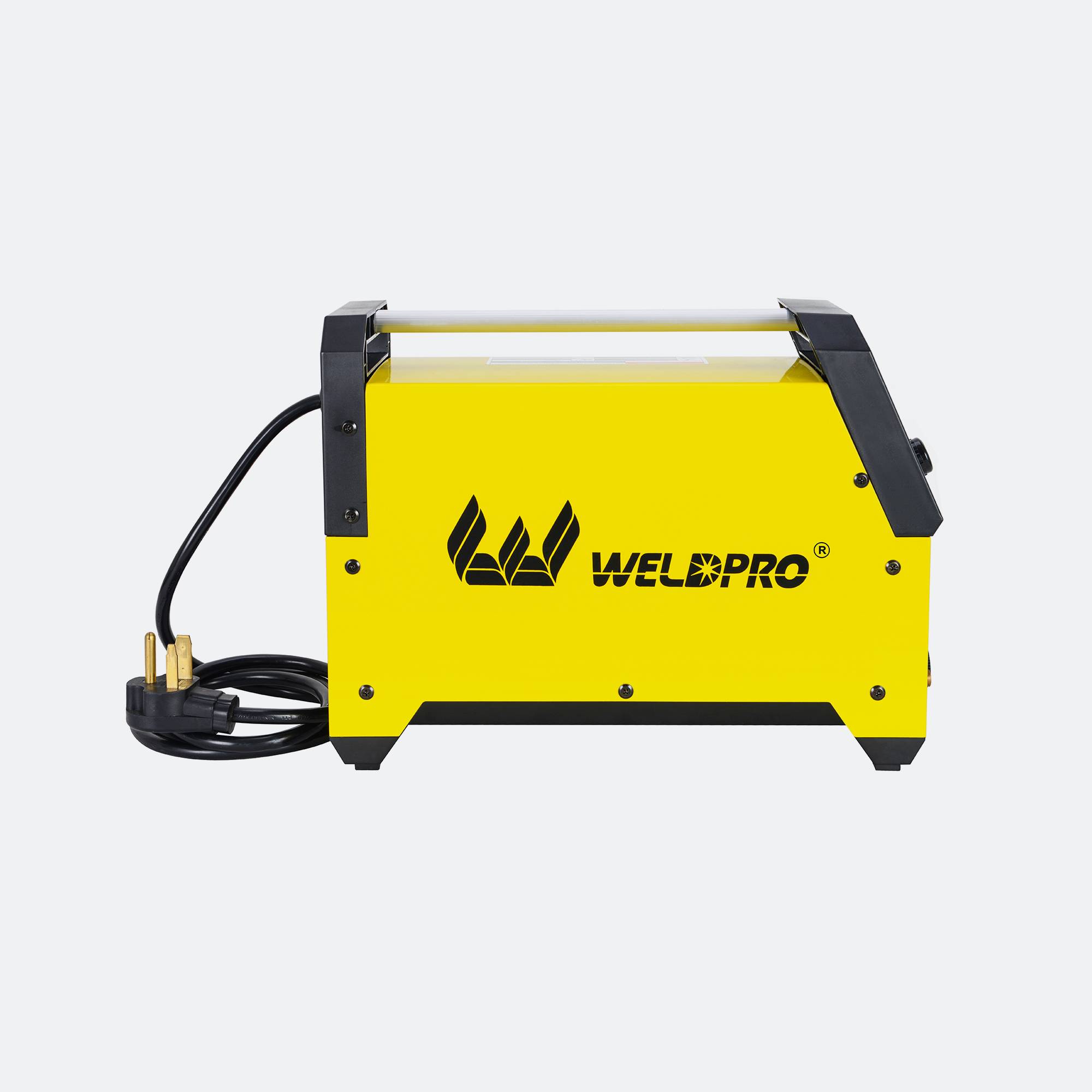

The Weldpro CUT40NH is a dual voltage, compact inverter manual plasma cutter that provides up to 40 amps of cutting current, making it capable of producing clean cuts on 1/2” steel plate.  The contactless mechanical “blowback” style pilot arc makes it easy to cut through painted metal, and will not interfere with surrounding electronics.  Cutting amperage ranges are 15-40 (240V) and 15-30 (120V).  The digital panel is simple and accurate, and air pressure is adjusted via the regulator knob on the front panel.  With 120V/240V capabilities, this welder can be operated almost anywhere a power outlet is found and can be used with "clean" power generators.  Clean, dry air with a minimum flow rate of 4.0 SCFM @ 70 Psi is required for proper air flow when cutting.  A 3 year power source warranty delivers confidence and peace of mind.

Features：

● Input 115V or 230V

● Easily cuts steel up to 1/2" 40A

● 20"  torch cable; 10" ground cable with clamp

● Common consumables, lightweight and portable

● Digital amperage control

● Air pressure adjustment and gauge on panel

● 3-year warranty Power Source

● Non High Frequency start

What's Included:

● 20'Cutting Torch
● Ground Clamp 200A with 10 Cable and 10-25 dinse connector
● Power Adapter 115/230V

Cutting Capacity:

● 40A-1/2"

● Material - stainless steel, aluminum, copper, cast iron, carbon steel.
Cutting thickness capacities vary with the thermal conductivity of metals being cut.
